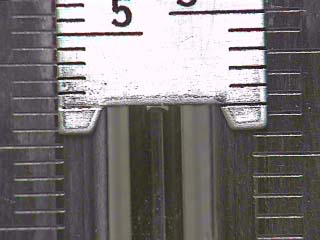

IMAGE. The scale just touching the top of the meniscus.
The sliding scale is postioned so that its bottom edge is alined with the meniscus of the mercury in the tube.
Note that in a narrow cylinder, mercury has a meniscus that has an upward curvature.
