| Electron Density of Aromatic Rings - Effect of Substituents |
 |
View Slide Thumbnails |
|
View Next Movie |
|
Voiceover
The intensity of the colors of complexes between benzene derivatives and tetracyanoethylene reveals their electron density.
Discussion

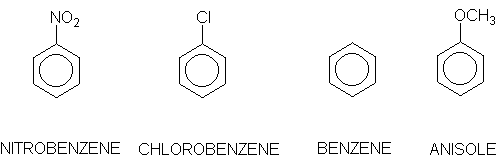

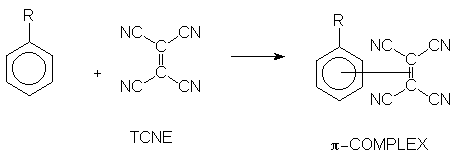

A 1% solution of tetracyanoethylene (TCNE) in dichloromethane is added to each of four test tubes containing nitrobenzene, chlorobenzene, benzene, and anisole respectively. TCNE forms colored p-complexes with aromatic rings and the intensity of the color increasing with increasing electron density of the ring. The nitro- and chloro- groups are both electron withdrawing. Nitrobenzene gives no added color, and chlorobenzene gives a pale yellow color with TCNE. The methoxy group is strongly electron donating and gives a purple color with TCNE.
|
Citation:
|
|
| |
Kolb, K. E.
|
J. Chem. Educ. 1989, 66, p 853.
|
|
