| Electron Density of Aromatic Rings - Effect of Methyl Groups |
 |
View Slide Thumbnails |
|
View Next Movie |
|
Voiceover
The intensity of the colors of complexes between benzene derivatives and tetracyanoethylene reveals the electron density on the aromatic rings.
Discussion

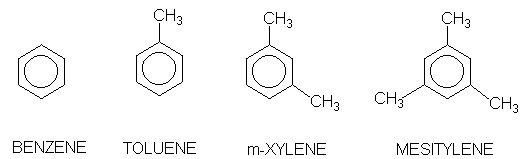

A 1% solution of tetracyanoethylene (TCNE) in dichloromethane is added to four test tubes containing benzene, toluene, m-xylene, and mesitylene respectively. The intensity of the color of the resulting p-complex increases with increasing electron density on the aromatic ring. A methyl group is electron donating and its effect is additive with mesitylene showing the highest electron density.
|
Citation:
|
|
| |
Kolb, K. E.
|
J. Chem. Educ. 1989, 66, p 853.
|
|
Design, Text and Demonstrator:
|
|
| |
Gary Trammell
|
University of Illinois at Springfield, Springfield, IL 62794
|
|
Videographer/Editor:
|
|
| |
Steve Dykema
|
University of Illinois at Springfield, Springfield, IL 62794
|
|
Voice:
|
|
| |
Margaret Biddle
|
University of Wisconsin - Madison, Madison, WI 53706
|
|
Audio Production:
|
|
| |
Greg Minix
|
University of Wisconsin - Madison, College of Engineering, Madison, WI 53706
|
| |
Jerrold J. Jacobsen
|
University of Wisconsin - Madison, Madison, WI 53706
|
|
