In this model, the atoms are depicted as spheres (balls) and bonds as rods (sticks). Each atom's radius is arbitrarily set at 20% of the van der Waals radius. Unbonded electrons are shown as blue dots with lines indicating their orientation in space. Atoms are colored by element: red for oxygen, blue for nitrogen, gray for carbon, white for hydrogen, yellow for sulfur, green for chlorine, purple for iodine, etc.

Atom Scale

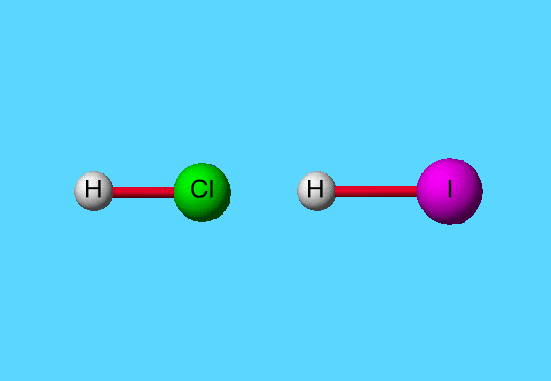

Relative atomic radii are illustrated here with hydrogen, chlorine, and iodine.

Bond Types

Each bond rod represents a pair of electrons. The bonds are color coded as follows:
- red for single bonds (a single rod or stick)
- yellow for double bonds (two rods or sticks)
- cyan for triple bonds (three rods or sticks)

Electron Pairs

Bonded atoms are located at distances and angles that have been obtained from the chemical literature. Sources of data are listed on the reference card at the end of the program. The nonbonded electron pairs have been manually located in approximately correct positions.
