Thin Layer Chromatography of Dyes

Sudan B, Erythrosin, Rhodamine B, and a mixture of the three are spotted on a silica gel thin layer chromatography plate, and developed in acetone to separate the components.


View Slide Thumbnails		View Next Movie

3.5 MB, 59 seconds

File: MOVIES/TRAM17/0573312.MOV

Voiceover
A silica gel thin layer chromatography plate is spotted with the dyes Sudan B, Erythrosin, Rhodamine B, and a mixture of all three. The plate is placed in a tank containing acetone and developed to separate the components.

Discussion

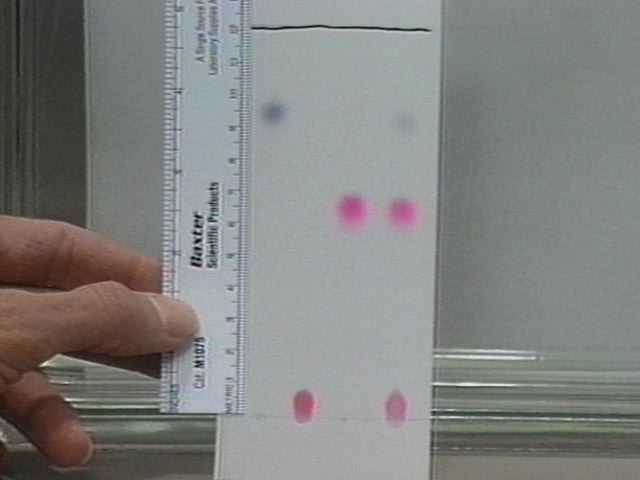

The solvent front is marked and a ruler is held next to the plate to allow calculation of Rf values.

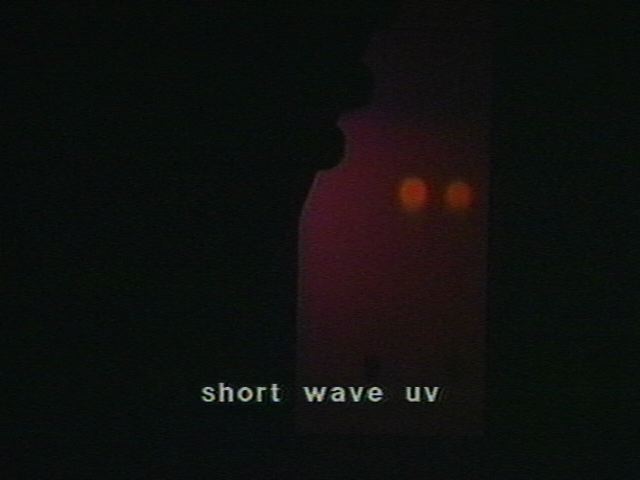

The plate is examined first under short wave ...

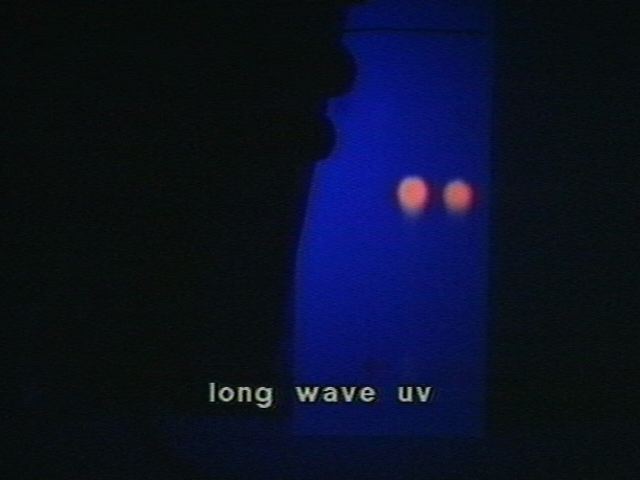

... then long wave ultraviolet light.

Rhodamine B fluoresces strongly under long wave U.V. light.

	distance component travels
Rf =	-------------------------------
	distant solvent travels

Citation:
		Eastman Fine Chemicals News, Eastman Kodak Co., 1991, 62, pp 9-10.
