Equilibrium

59. (Transition metal complexes, Le Châtelier's principle) The cobalt complexes participating in the equilibrium below comprise a humidity sensor. From Le Châtelier's principle, when the sensor is moist (excess H2O), what color is the cobalt complex?


pink, blue

60. (Equilibrium, polarity) Demonstration: A solution of iodine dissolved in water is placed in a separatory funnel. An equal volume of CCl4 is to be added to the funnel. Based on polarity,

most of the iodine will prefer to stay in the water layer, most of the iodine will prefer to transfer into the CCl4 layer

Add the CCl4 in such a way as to minimize mixing. Is the system at equilibrium?

yes, no

Shake several times to show that color changes eventually cease.

The equilibrium constant K for the reaction

I2 (in water) = I2 (in CCl4)


has a value of ~100 near room temperature. If at some time the concentration of I2 in water is 0.1 mM and of I2 in CCl4 is 1.0 mM, what will happen?

no net movement of I2 between solvents, I2 in water will move into CCl4 , I2 in CCl4 will move into water.


Once equilibrium for this partitioning experiment has been established, the amount of each solvent is to be doubled. What will then happen?

no net movement of I2 between solvents, I2 in water will move into hexane, I2 in hexane will move into water.


Repeat the initial experiment in the reverse order: a solution of CCl4 having the same total I2 concentration is placed in a separatory funnel and an equal volume of water is to be added to it.
Will the I2 partition itself in the same way after shaking? (Compare the two separatory funnel color distributions)

yes, no


In water, I2 can combine with I­p; ion to form a complex, I3­p;, with a relatively large equilibrium constant of ~1000 M-1. Demonstration: If KI is added to the water layer containing I2 that had come to equilibrium with a layer of I2 in CCl4 , what will happen?

no net movement of I2 between solvents, I2 in water will move into CCl4 , I2 in CCl4 will move into water

61. (Equilibrium) Consider the bonds that must be made or broken for the reaction

O2N-NO2 (g) = 2 NO2 (g)


The reaction will be

endothermic, exothermic

63. (Equilibrium, concentration, competition) A competition experiment involves O2 and CO vying for hemoglobin (Hb) sites, defined by the equilibrium

Hb(O2)4 + 4 CO = Hb(CO)4 + 4O2


From Le Châtelier's principle, how is CO poisoning reversed?

decrease O2 pressure, increase O2 pressure, remove Hb

64. (Equilibrium, Le Châtelier's principle; Ch. 5 & 9 "Companion") The body-centered cubic (bcc) phase of a metal has a 68% packing efficiency, while the face-centered cubic (fcc) phase of the same metal has a 74% packing efficiency. For the equilibrium

bcc metal = fcc metal


as pressure increases, the equilibrium

shifts to the left, shifts to the right, is unaffected

66. (Enthalpy, equilibrium) N2(g) + 3H2(g) = 2 NH3(g) + reaction energy; Which are collectively stronger bonds?

those in the reactants, those in the products


What effect will spraying H2O into the system have if NH3 is far more soluble in H2O than N2 and H2?

no effect, increase product, increase reactants

68. (pH scale) A solution with pH=5 is 100 times more acidic than a solution with a pH = ?

7, 3, 0.05

70. (Weak acids, Le Châtelier's principle) CH3COOH = CH3COO- + H+; pKa=5
To make more CH3COOH, add

NaOH, HCl

To make more CH3COO-, add

NaOH, HCl

At pH=2, what is the most prevalent species?

CH3COOH, CH3COO-, equal amounts of the acid and its conjugate base

At pH=5, what is the most prevalent species?

CH3COOH, CH3COO-, equal amounts of the acid and its conjugate base


Which plot shows the correct distribution of acetic acid as a function of pH?

A, B


83. (Doping, semiconductors, periodic properties; Ch. 8 "Companion") Which dopant will act as an acceptor for Si?

B, Ge, As

As a donor?

B, Ge, As

84. (Equilibrium; Ch. 8 "Companion") As a dopant in Si, Al is involved in the equilibrium
Al = h+ + Alx. What is the charge on the aluminum in the product?

-1, 0, +1

85. (Phase changes, Le Châtelier's principle; Ch. 9 "Companion") Nickel titanium memory metal has a symmetric cubic unit cell in its high temperature form and a less symmetric noncubic unit cell in its low temperature form. Demonstration 9.6 "Companion": By slightly changing the Ni to Ti ratio, a sample can have, at room temperature, one or the other of these phases. Two small rods, one in the symmetric structure, one in the less symmetric structure at room temperature are dropped on the floor. One produces a ringing sound, the other a soft thud. Which gives the ringing sound?

the symmetric high temperature phase, the less symmetric low temperature phase


To cause the ring-sounding sample to give a thudding sound,

heat it, cool it

Demonstration: cool the sample with liquid nitrogen, remove it and drop it to hear a thud. Rapid hand warming will eventually restore the ring during repeated drops.

Which phase is more mechanically flexible?

the symmetric high temperature phase, the less symmetric low temperature phase


When nickel titanium memory metal interconverts between the symmetric high temperature form and the less symmetric low temperature form, which of the following changes?

elemental analysis, X-ray diffraction pattern, hardness


When a sample of nickel-titanium in the high temperature phase is bent, as pictured, the atoms that are under compression and thus favored by Le Châtelier's principle to convert to the denser low-temperature phase are those

at the bottom of the bend, in the middle of the bend, at the top of the bend

Demonstration 9.5 "Companion": Bend memory metal eyeglass frames and show that they return to their original shape. Then cool with liquid nitrogen to show that when the eyeglass frames are in the more flexible low temperature phase they stay bent until they return to room temperature, where they regain their original shape.

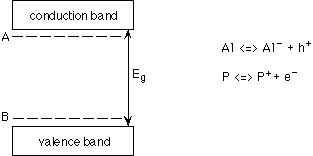

86. (Semiconductors, bands; Ch.8 "Companion") Pictured below is an energy band diagram for silicon.

When doped into Si, Al is a(n)

donor, acceptor

When doped into Si, P is a(n)

donor, acceptor

Which energy level corresponds to Al?

A, B

Which energy level corresponds to P?

A, B

87. (Semiconductors, doping; Ch 8 "Companion") Which is a weaker acceptor (analogous to weaker acid)

In, Cu

Which is a weaker donor (analogous to weaker base)?

As, Mn


98. (Equilibrium) Keq = [NO2]2/[N2O4]; heat + N2O4 = 2 NO2
As temperature increases, the equilibrium constant, K

increases, decreases, remains constant

99. (Autoionization, equilibrium; Ch. 8 "Companion") If the product of n and p in a semiconductor is a constant, the two are

directly related, inversely related

100. (pH scale) Demonstration: Predict a pH value for 0.1 M NaOH.

1, 7, 13

102. (Doping, equilibrium, autoionization; Ch. 8 "Companion") KSi = [h+]x[e-] = p x n = 1020 cm­p;6 For this endothermic autoionization reaction, as temperature increases, KSi

increases, decreases, remains constant

116. (Equilibrium) If K = 100 = [I2 in CCl4] / [I2 in water] for the equilibrium

I2 in water = I2 in CCl4


What is K for the reverse reaction, I2 in CCl4 = I2 in H2O?

100, 1, 0.01

121. (Coordination chemistry, equilibrium) Demonstration: A green solution of Ni(H2O)62+ has added to it a small quantity of ammonia, which turns the solution blue through formation of Ni(NH3)62+; the value of K for this reaction is ~109. To this blue solution is added about the same number of moles of the chelating ligand ethylenediamine (en), turning the solution violet through formation of Ni(en)32+; the value of K for this reaction is also ~109. Using these same quantities, what happens if en is added first, then the ammonia is added?

the violet solution turns blue; the violet solution stays violet

122. (Vapor pressure, equilibrium) Demonstration: The same amount of solid iodine is added to two identical glass tubes, which are then stoppered and heated to the same temperature. The color in the two tubes is seen to be the same and solid iodine is still present in the bottom of the tubes. When a lot of additional iodine crystals are added to one of the tubes

the color of the vapor in that tube will become darker, there is no change in the color of the vapor, the color of the vapor in that tube will become lighter

124. (Equilibrium, semiconductors, doping; Ch. 8 "Companion;" LeChâtelier's principle) When doped into Si, Cu is a weak acceptor, Cu = Cu- + h+.

To convert most of the copper to Cu-, dope with

a strong acceptor like aluminum, a strong donor like phosphorus

126. (Chromatography, equilibrium) The chromatographic equilibrium for a species A can be described as A in mobile phase <==> A in stationary phase
A mixture of two volatile compounds is injected onto a column with air, which doesn't interact with the column. Which of the three peaks below is air?

1, 2, 3

Which of the other two peaks corresponds to the larger equilibrium constant K?


1, 2, 3

139. (Semiconductors, equilibrium, Ch. 8 "Companion") When a semiconductor having autoionization equilibrium constant K is irradiated with light above its band gap energy

n x p = K, n x p > K, n x p < K

147. (Semiconductors, equilibrium; Ch. 8 "Companion") Given that the band gap energy for Ge is less than that for Si, at room temperature what will be true of the equilibrium constants for autoionization of the two solids?

KSi > KGe, KSi = KGe, KSi < KGe

148. (Semiconductors, equilibrium; Ch. 8 "Companion") Compare the number of carriers per cm3 in silicon and water at room temperature from the graph below?

104 times more in silicon, equal numbers, 104 times more in water


150. (Semiconductors; Ch. 8 "Companion") Conductivity reflects the concentration of electrons, n, and holes, p; and n x p = K. In pure Si, K = 1020 cm-6. There are approximately how many charge carriers per cm3?

1020, 1010, 10

When Si is doped with Al to make p = 1017, there are now approximately how many charge carriers per cm3?

103,1010, 1017

156. (Equilibrium) I2 in water = I2 in oil; K1 = [I2 in oil ] / [I2 in water]
I2 in oil = I2 in ether; K2 = [I2 in ether ] / [I2 in oil].

What is K3 for the summed reaction, I2 in water = I2 in ether; K3 = [I2 in ether] / [I2 in water]

K3 = K1 + K2, K3 = K1 x K2 , K3 = K1 / K2 , K3 = K2 / K1

157. (Chirality) Chiral molecules rotate the plane of polarized light because the left- and right-hand circularly polarized components of the light (which trace out chiral opposite-handed helices) experience different refractive indices in their interactions with a chiral molecule and travel at different velocities (c/n), causing a net rotation of the plane-polarized light. If RHCPL travels faster through a solution of the d isomer of a chiral molecule, causing a clockwise rotation, which other combination causes the light to travel at this same velocity?

d isomer with LHCPL, l isomer with LHCPL, l isomer with RHCPL

Is the plane of polarized light rotated in the same direction in both of these experiments?

yes, no





More questions are needed for this section. Please submit contributions to concept@chem.wisc.edu
